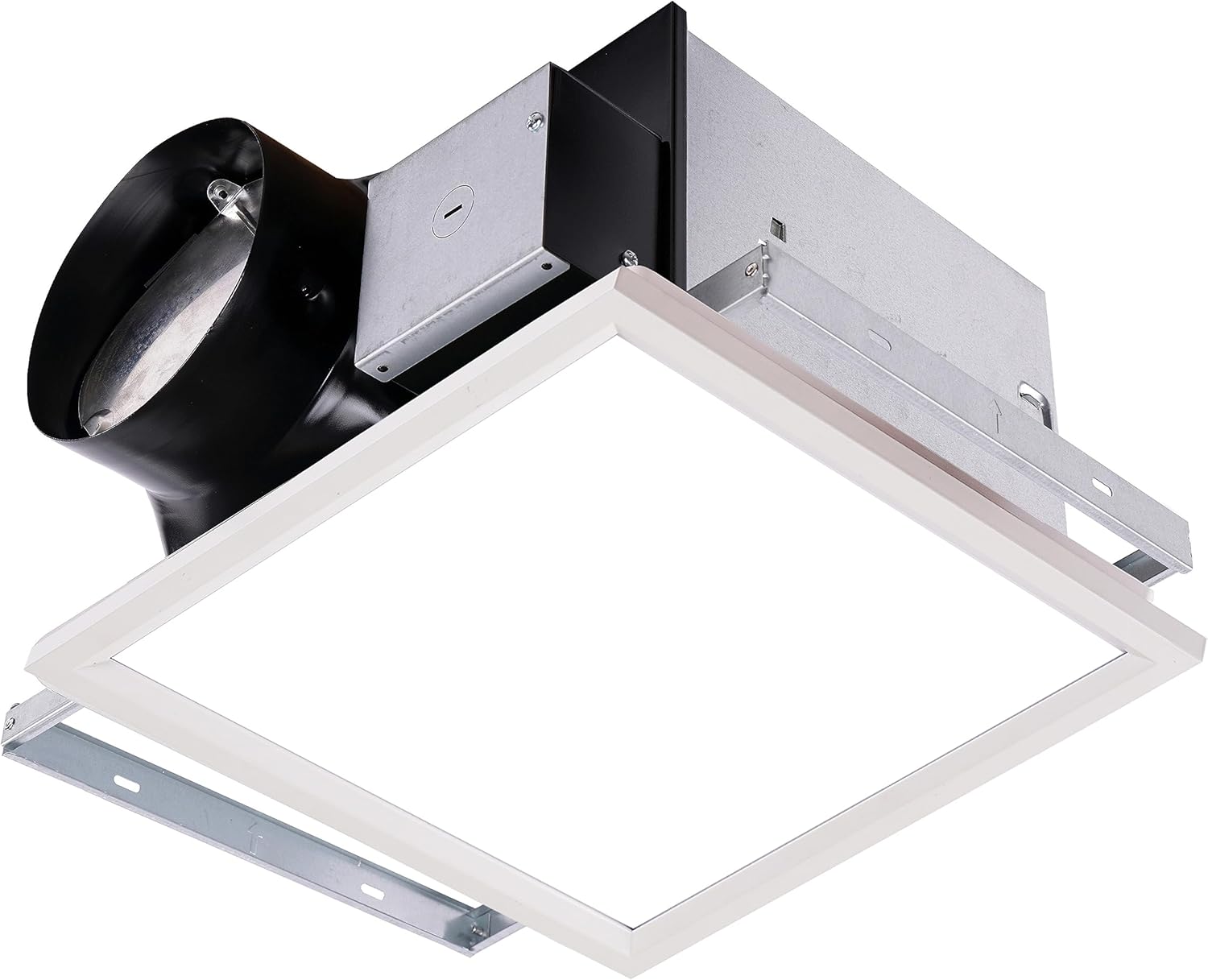

KAZE APPLIANCE SEP150L11-EZ | 150 CFM | 0.5 Sone | Dimmable 4000K Edge Lit LED | EZ Install No Attic Access Required | Energy Star-Certified Ultra Quiet Bathroom Ventilation Exhaust Fan
KAZE APPLIANCE SEP150L11-EZ | 150 CFM | 0.5 Sone | Dimmable 4000K Edge Lit LED | EZ Install No Attic Access Required | Energy Star-Certified Ultra Quiet Bathroom Ventilation Exhaust Fan
Low stock: 2 left
SKU:B0CFFY6WWL_parent
Couldn't load pickup availability
Product description
About KAZE APPLIANCE
Established in 2011, KAZE APPLIANCE specialize in quiet bathroom exhaust fans. Our lineup includes LED, humidity sensing and motion sensing bathroom exhaust fans.
KAZE APPLIANCE Bathroom Ventilation Fan
Powerful Yet Quiet. No Attic Access Needed. 4000K LED Light
Model: SEP150L11EZ
No Attic Access Needed, 4000K Edge Lit LED Panel
Powerful suction of 150 CFM at super quiet sound level of 0.5 sones
- CEILING OPENING SIZE - Please note the ceiling opening requirement is 12 x 11 1/2 inch, resizing your existing ceiling opening will be needed if existing fan housing is different.
- SUPER QUIET - Barely audible sound level of less than 0.5-Sones at 150-CFM. Suitable for bathroom size up to 150 square feet.
- INSTALLATION - No Attic Access Required. See below for installation instructions.
- LED LIGHT - Modern Edge Lit LED light panel. Color temperature 4000K.
- DUCTING - Removable 6 inch metal duct adapter with back draft prevention damper.
- RELIABILITY - Proudly stand behind our products.
KAZE APPLIANCE SEP150L11-EZ Super Quiet 150 CFM , 0.5 sones with LED light Ceiling Mounted Ventilation Fan
Model No: SEP150L11-EZ. 150 CFM, 0.5 sones super quiet.
Please note ceiling opening size requirement is 12" x 11 1/2", resizing your existing ceiling opening will be needed if your current fan housing is different.
Suitable for standard bathroom size up to 150 square feet.
KAZE Appliance is proud to present SEP150L11-EZ, redesigned one piece blower assembly with removable 6 inch metal duct further improves stability and reliability. Built with high-quality components and permanently lubricated motors to give continuous, trouble-free operation. The electrical configuration of the condenser motor is designed to operate at lower temperatures, thus increasing the life of the motor and bearings. The fan housing is made of rugged 26 GA galvanized steel and painted to prevent from rusting. Heavy duty triple point mounting brackets can be adjusted up to 24-inch joist centers for easy, fast and universal installation in different types of constructions.
Peace of mind quality, performance and reliability.
Air delivery rate: 150 CFM
Noise Level: 0.5 Sones Super Quiet
Duct Size: 6-inch round duct metal adapter with built in back draft metal damper.
Grill Dimension: 13 by 14 inches polymeric resin grille attaches directly to housing with torsion springs
Housing Dimension: 11 3/8 by 10 1/2 by 7 5/8 inch
Voltage / Frequency: 120Volt/60Hz
Retrofit Installation Steps | No Attic Access Needed
___________________________________________________________________________________________________________________________________
Step 1
Prepare ceiling opening size 12.5 x 11.5 inch for installation.
Insert Easy Install Frame into ceiling opening and extend both sides of the frame to the joists and secure with provided screws.
Step 2
Connect the 6 inch ductwork and electrical wiring to Duct Assembly Panel.
Insert the Duct Assembly Panel to the Easy Install Frame.
Step 3
Line up the side of Housing with duct opening to the Duct Assembly.
Push the Housing up and slide across the slot of Duct Assembly.
Secure Housing and Duct Assembly to the Easy Install Frame using the screws provided.
Pull the tab out of the housing to lock.
Step 4
Insert Fan Blower Assembly into Housing and secure with screws.
Connect the power of Fan Blower Assembly to the receptacle in the Duct Assembly.
Finally install the grille cover.
SEP EZ INSTALL 1
SEP EZ INSTALL 2
SEP EZ INSTALL 3
SEP EZ INSTALL 4
KAZE APPLIANCE Collection of Power | Quietness | Functionality
___________________________________________________________________________________________________________________________________
120 CFM EZ Install | 120 CFM with LED | 120 CFM with Humidity Sensor | |
|---|---|---|---|
| Customer Reviews | 4.1 out of 5 stars 411 | 4.2 out of 5 stars 688 | 4.1 out of 5 stars 411 |
| Price | $159.50$159.50 | — no data | $169.50$169.50 |
| CFM | 120 | 120 | 120 |
| Noise (sones) | 0.3 | 0.3 | 0.3 |
| LED Light | no data | ✓ | no data |
| Humidity Sensor | no data | no data | ✓ |
| Motion Sensor | no data | no data | no data |
| EZ Install | ✓ | no data | no data |
