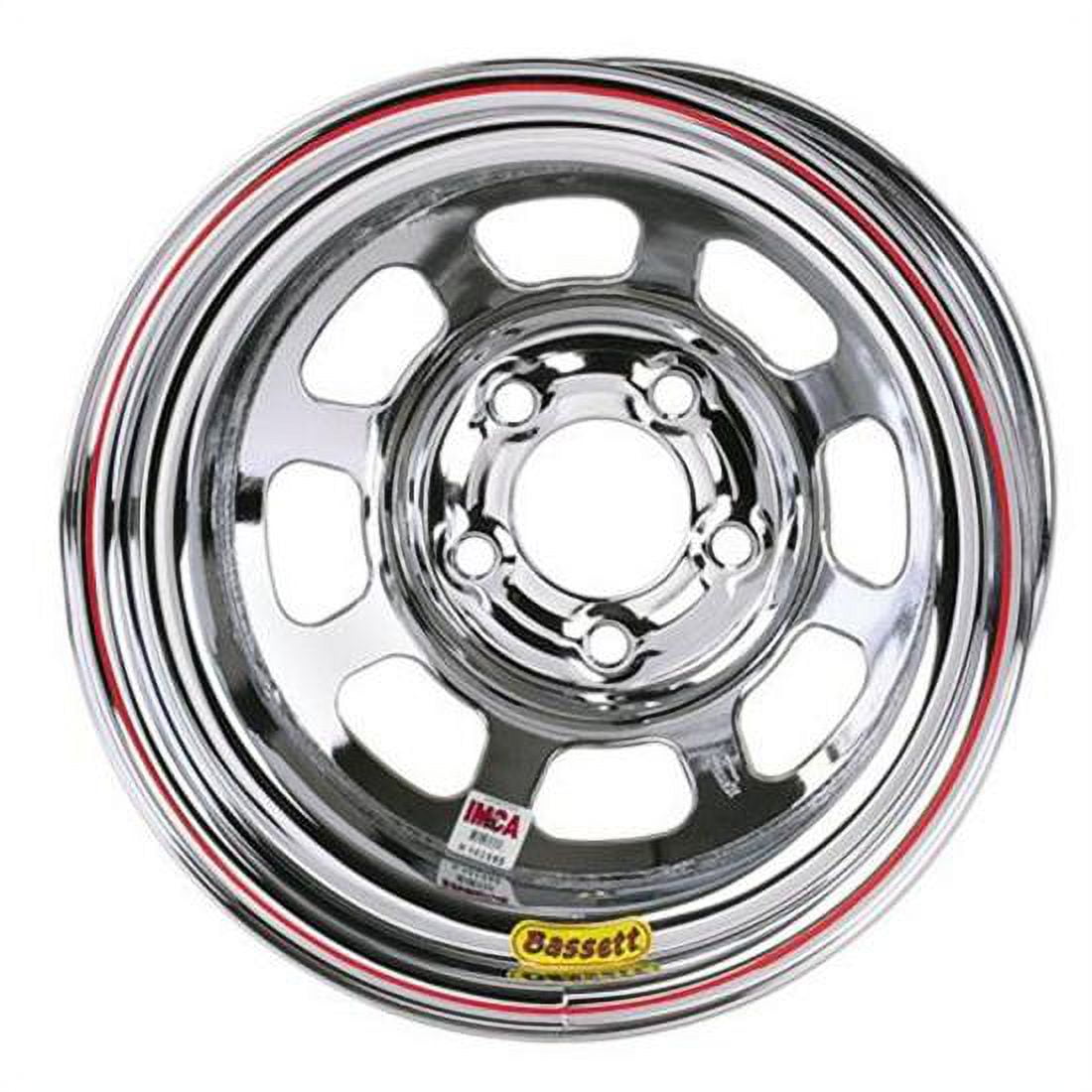

Bassett 15 x 8 IMCA Chrome D-Hole 5x5 Wheel, 4 Offset, No-Bead

Bassett brought back the 15 x 8 D-Hole style 15 inch wheel for the IMCA and asphalt markets featuring the same quality spun-form shell as the Inertia Advantage wheel, but at a more economical price. 15 Inch Wheel. 8 Inch Width. 5 on 5 Inch Bolt Pattern. Light weight, yet strong enough for 3500 lbs. stock cars. Spun-form shell provides the lowest runout on market (under .030") for better handling. Valve stem behind center in window. Beaded Shell to prevent tires from rolling off, very durable. IMCA ApprovedLearn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article. Racing Wheel Principles. Item DetailsIMCA Approved For offroad use only. The following must be considered when using Bassett wheels for on highway/street use when the wheel/tire assembly is being balanced. Bassett wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone. For offroad use only. The following must be considered when using Bassett wheels for on highway/street use when the wheel/tire assembly is being balanced. Bassett wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.

Specifications

Brand: Bassett Racing
Wheel Diameter: 15 in
Vehicle Rim Size: 15 x 8 in
Color: Chrome
Finish: Chrome
Wheel Lug Pattern: 5 x 5 in
Wheel Offset: 4
Number of Lugs: 5
Maximum Load Weight: 3500 lb
Model: Bassett
Assembled Product Weight: 21 oz
Material: Steel
Assembled Product Dimensions (L x W x H): 17.00 x 17.00 x 10.00 Inches
