Edelbrock 5703, 1.262 In Valve Springs - Sbc Performance Racing Parts

5703 by Edelbrock

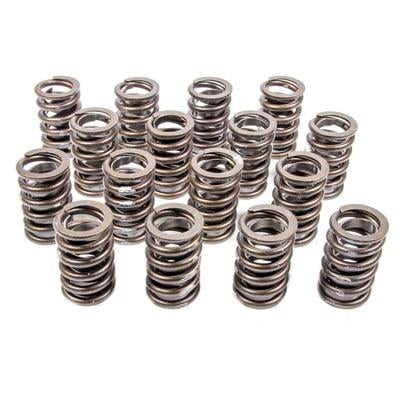

Valve Spring, Sure Seat, Single Spring / Damper, 1.160 in Coil Bind, 1.262 in OD, Small Block Chevy, Set of 16

?? Product details available below ??

?? Product Attributes ??

• Product Line: Sure Seat
• Spring Style: Standard
• Spring Quantity: Single Spring
• Damper: Yes
• Spring Rate: 357 lb/in
• Coil Bind Height: 1.16 in
• Installed Height: 1.7 in
• Outside Diameter of Outer Spring: 1.262 in
• Inside Diameter of Outer Spring: 0.878 in
• Seat Load (LBS): 110 lbs
• Seat Load At (in): 1.7 in
• Open Load (LBS): 285 lbs
• Open Load At (in): 0.49 in
• Material: Steel
• Quantity: Set of 16

?? Product Dimensions ??

• Package Weight: 3.20 lbs
• Package Length: 13.85 in
• Package Width: 3.75 in
• Package Height: 2.6 in

?? Brand ??
The Edelbrock name has been a staple of the automotive performance industry since the 1940’s. With a product line that includes virtually everything under the hood, from individual components to complete engines, Edelbrock is one of the most recognized and trusted brands in the racing and performance world.

??? Warranty ???
This product is covered by a limited lifetime warranty against manufacturer defects by the brand.

[ IMPORTANT NOTES]

• No returns or exchanges once product has been installed on the vehicle.
• It is important to check/verify fitment prior to installation.
• If you have questions about the product or vehicle fitment, please use the Q&A section below, and reach out to us directly.

Specifications

Brand: Edelbrock
Manufacturer Part Number: 5703-PRT
Manufacturer: Edelbrock
