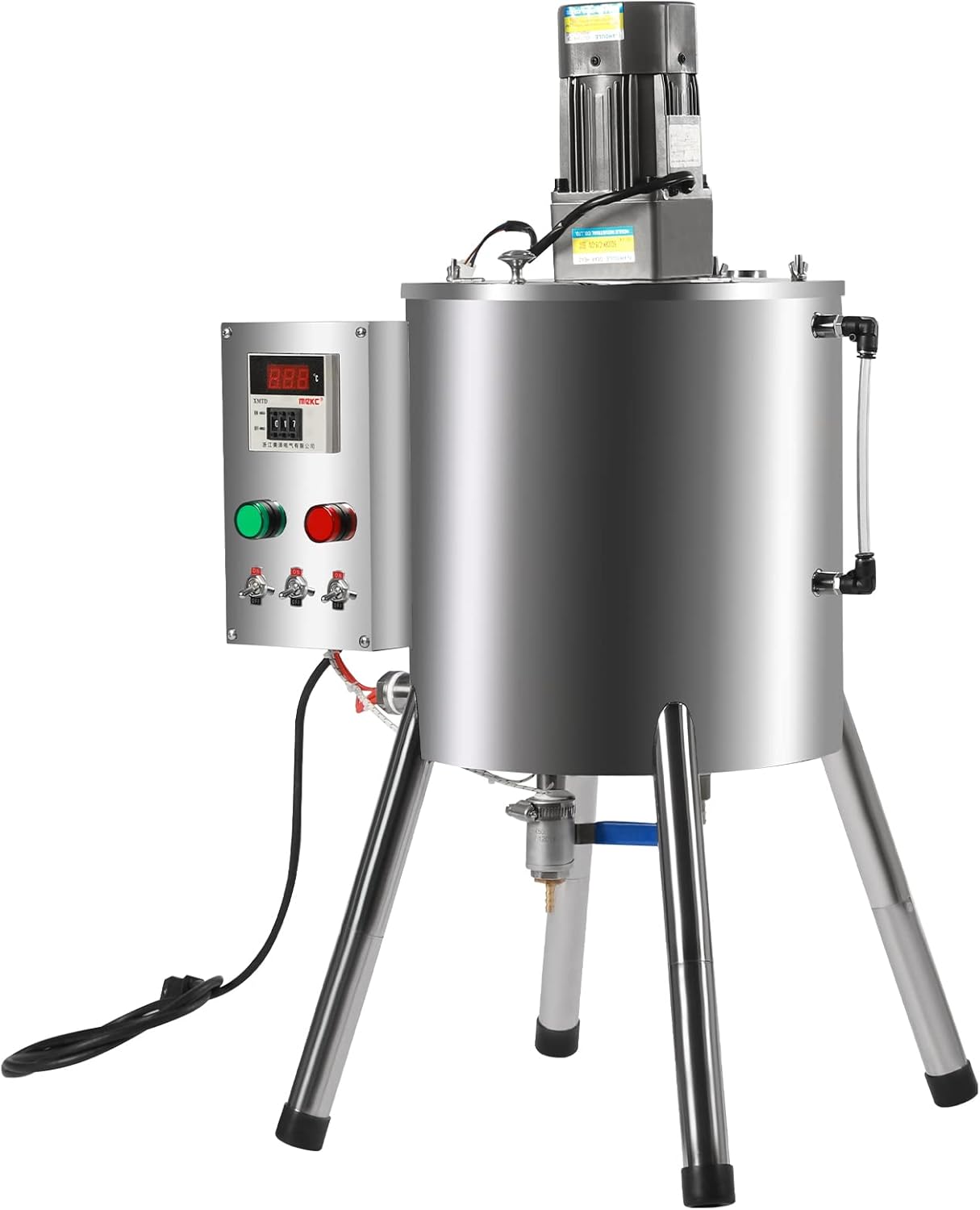

Heating Mixing Filling Machine, Adjustable Temperature Lipstick Candle Heat Filler, 110V US Stirring Tank Filler,For Dissolving and Filling Paste and Liquid (30L)

• 【High-quality Material】: Corrosion and heat-resistant high-quality 304 stainless steel plate (thickness 0.08 inch) will not react with the material, ensuring the purity of filling while providing excellent durability. Professional automatic argon arc welding process to create seamless and dense welded joints.
• 【Uniform Stirring & Heating】: Powerful pure copper motor (max. speed 36rpm, power 60 watts), T-shaped paddle, and double industrial grade heating tubes (0.75kw*2) provide uniform and efficient stirring and heating for the material, which makes the filling more smooth and efficient.
• 【Wide Applications】: The heating layer can reach 90℃ with water, and the highest heating temperature can reach 300℃ with heat-conducting oil, which allows it to be applied to different materials to meet commercial needs.
• 【Capacity Optional】: We offer 4-gallon and 8-gallon capacity lipstick-filling machines for you to choose from, which can meet different needs.
• 【Anti-leakage & Curing】: Stainless steel discharge nozzle with a C-shaped heating tube and ball valve control realizes constant temperature heating and manual control of discharge throughout the process, which can effectively prevent leakage and curing.
• 【Excellent Craftsmanship】: Professional automatic argon arc welding process to create seamless and dense welded joints. The exquisite polishing process creates a wear-resistant, smooth, and stylish surface.
• 【High Efficiency】: Excellent heating (1.5kw) and stirring (60w) nature easily achieves efficient filling of 20-45 bottles per minute, which will greatly save time and effort.

Description

With excellent mixing ability, sealing, and constant temperature heating performance, this lipstick-filling machine is an ideal tool to improve filling efficiency and quality. With its 4-gallon capacity, adjustable heating temperature, and simple operation, it will do liquid and cream filling for you excellently.

Details

Stabilizing Support Pillars: Four support pillars with non-slip sleeves at the bottom provide stable support to prevent the product from slipping.

Removable Lid: The lid has screws for easy removal and installation. The handle facilitates opening and closing the lid.

Level Gauge: The mezzanine is equipped with a level gauge for easy observation of water/oil levels.

Copper Valves: Corrision-resistant copper valves are sturdy. The user-friendly valve handle makes operation easier and more accurate.

Heat Dissipation Holes: Multiple heat dissipation holes of the motor can dissipate heat in time to prolong the service life.

Protective Cover: Temperature control panel with a clear protective cover can effectively prevent dust and water to improve the safety of use.

Application

It is used for dissolving and filling creams and liquids in daily chemical, food, and pharmaceutical fields such as lipstick, shoe polish, ointment, petroleum jelly, wax products, perfume, honey, edible oil, juice, beer, beverage, and skin care water.

Specification

Model: YK-15L

Capacity: 15L/4gal

Gross Weight: 22kg/48.5lbs

Net Weight: 20kg/44lbs

Package Size: 55*52*40cm/21.7*20.5*15.7in

Product Size: 53*39*70cm/20.87*15.35*27.56in

Model: YK-30L

Capacity: 30L/8gal

Gross Weight: 30kg/66lbs

Net Weight: 25kg/55lbs

Package Size: 46*62*59cm/18.1*24.4*23.2in

Product Size: 53*39*79cm/20.87*15.35*31.3in

Application: Liquid, Paste

Material: 304Stainless Steel, Copper

Color: Silver

Voltage: 110V 60HZ

Plug: US Standard

Heating Power: 1.5kw(2*0.75kw)

Stirring Power: 60w

Stirring Motor Max. Speed: 36rpm

Power Supply: 2.1kw

Outlet Heating Power: 120w

Certificate: CE

Filling Accuracy: ±1%(Specific Accuracy is Controlled Manually)

Adjustable Temperature: 0-300℃/32-572℉

Assembly Required: Yes

Filling Mode: Manual

Power Sources: Electric Corded

Filling Speed: 20-45 Bottle/min(Depends on Actual Personal Degree of Operation Proficiency)

Process: Automatic Argon Arc Welding. Polishing

Bucket Wall Thickness: 2mm/0.08in

Package Included

1*Lipstick-filling Machine

1*Stirrer

4*Support Pillars

1*English User Manual

All Accessories Needed for Use

Notes

1. The water filling port is also used to discharge steam, please do not block it.

2. Please clean the drum before use.

3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.
