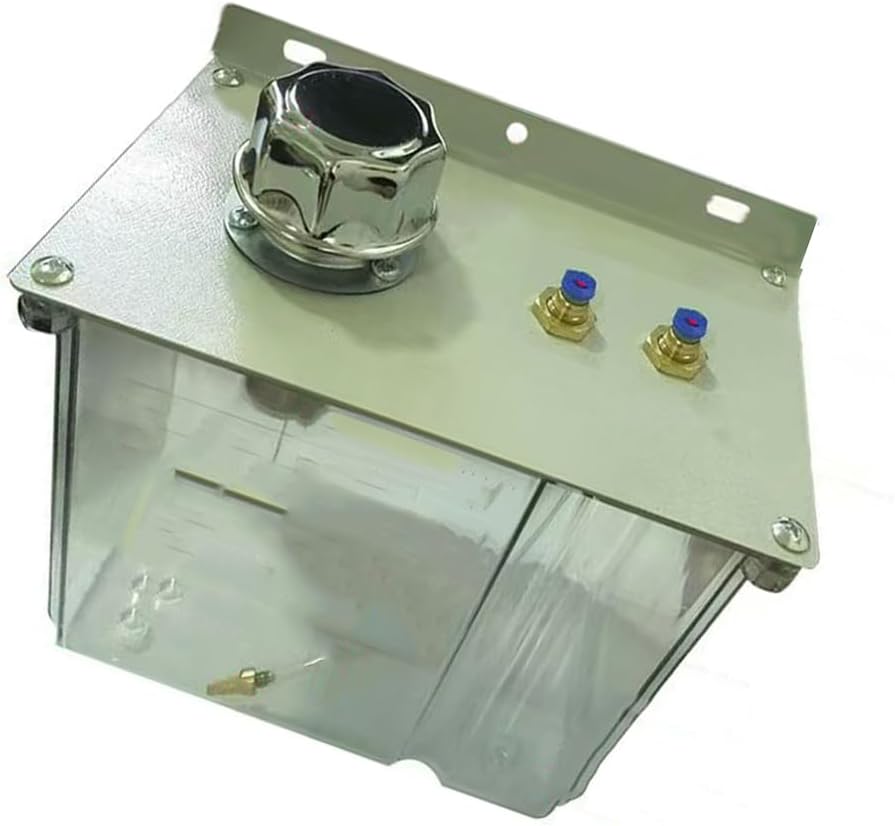

HJHLYJQBF Misty coolant Lubrication Spray System for Metal Cutting Engraving Cooling Sprayer 8mm air Tube CNC Lathe milling Machine 3L Special Container (Dual Socket) 2pcs

• High Quality Materials: This coolant spray system is made of plastic, metal to meet the needs of high hardness, high toughness and high stability.
• Easy to use: The nozzles of the coolant spray system are easy to operate, saving over 8/10 of process coolant and cooling effect will not be reduced.
• Widely used: This is suitable for 8mm CNC lathes and milling machines.
• Can be sprayed: water, alcohol, coolant, engine oil, kerosene, cooking oil.
• No water pressure required: Coolant mist sprayer, can spray 1 kg of air pressure.

How to use:
1. The gas pipe of the air pump ingests air from the air inlet marked in the air filter. The air is released from the external socket and then connected to the solenoid valve with two copper mufflers at the end of the air inlet.
2. Apply plugs from the end of the solenoid valve to the free blue gas pipe in the air inlet of the sprayer. One end of the free transparent tube is connected to the check valve on the storage tank, and the other end is inserted directly into the oil suction port of the sprayer.
3. Use the PLC program to control the opening and closing of the solenoid valve, and the machine PLC accesses the solenoid valve coil. The solenoid valve is open, on the ventilation spray; the solenoid valve is closed, and no gas is sprayed.
(If you want the power supply to work, you need to connect the PLC device or automatic signal to the solenoid valve: The connection method is two parallel in the solenoid valve coil, connecting it to the positive and negative poles, the two contacts are not front or negative poles.
Product parameters:
size:
Solenoid valve: 11.8 cm 4.65 inches)
Air filter: 19.5 cm (7.68)
Material:
Fuel tank: resin material
Fuel tank cap: A3 iron
Sprayer, solenoid valve: aluminum alloy
Air filter: iron shell + engineering plastic
