About this item

• 【Good Material】: The shell is processed and formed with high-quality cold plates treated with spraying technology. The stainless steel inner liner can withstand high temperatures well, ensuring stable and long-term operation.
• 【Uniform Heating】: It can set the temperature to a maximum of 572°F (minimum 18°F higher than room temperature), adapting to various needs such as drying, heating, reheating, etc. The air circulation promoted by natural convection, combined with a separate fan switch, makes the material dry faster and more evenly.
• 【Large Capacity】: This 12Gal double-tier drying oven, combined with 2 adjustable trays that can bear a weight of 33 lbs each, allows you to dry more materials or items at once, making a large number of high-performance materials for the laboratory, thereby saving time and improving efficiency.
• 【Intelligent Temperature Controller】: The digital display PID temperature controller has functions such as timing, over-temperature alarm indication, temperature deviation correction, and temperature self-tuning control.
• 【Extensive External Connection】: You can also install additional functions such as LCD instrument panel, programmable instrument panel, printer, 485 interface, USB storage, SMS alarm, etc. according to your actual needs (all excluded).

Description

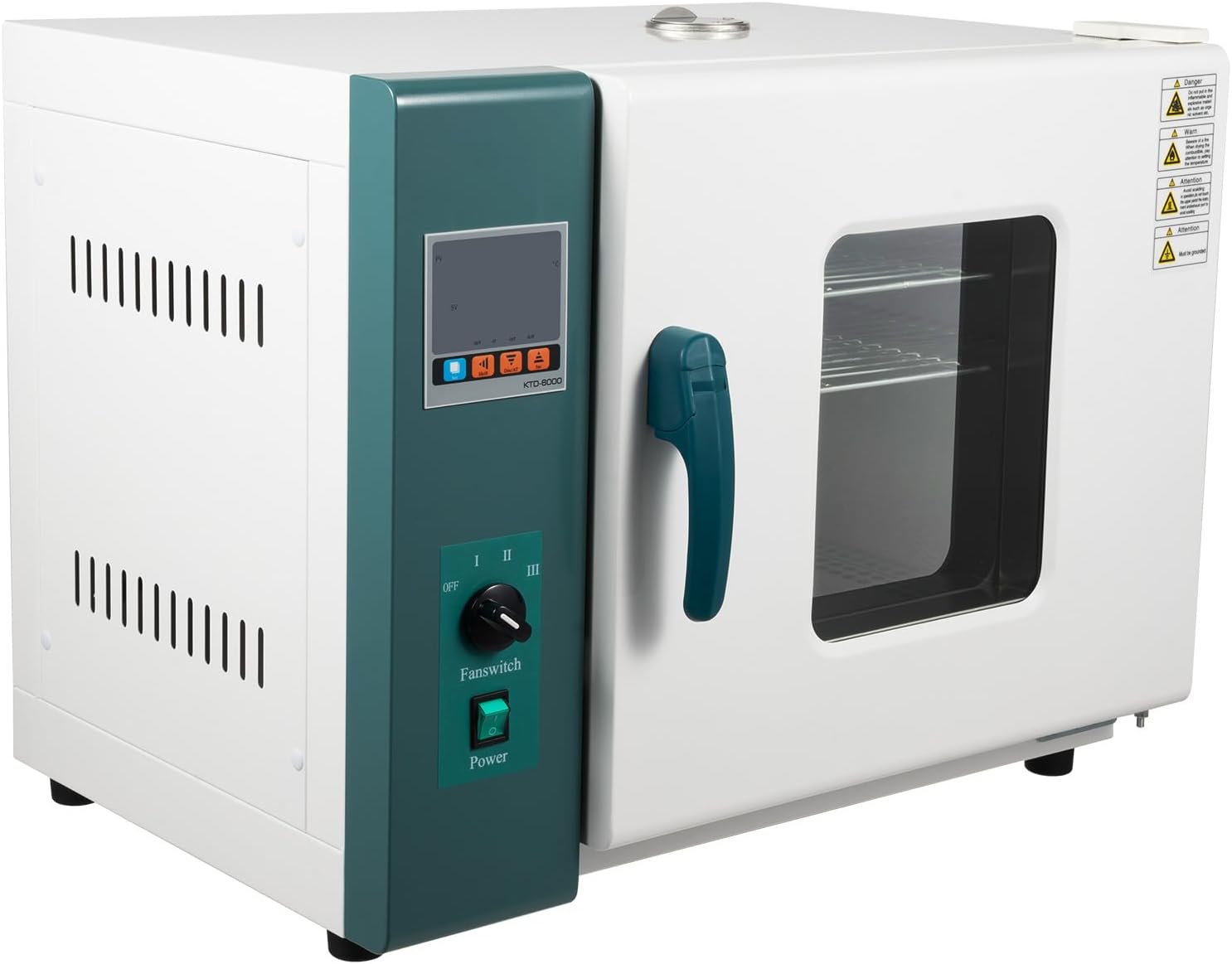

Precision experiments have higher requirements for materials and instruments, especially in temperature control. When you need to deal with a cluttered and large amount of materials and instruments that need to be dried but are at a loss, it means you need our horizontal electric blast drying oven! The drying oven designed specifically for laboratory situations can provide you with precise temperature, uniform drying, and sufficient capacity. With it behind your back to help you run errands, you can finally devote more energy to scientific experiments!

Details

Observation Window: A large double-tier tempered glass observation window makes it easy to observe changes in the items inside the box.

Anti-slip Feet: The anti-slip feet can effectively maintain the stability of the machine and prevent the desktop from being scratched.

Drainage Hole: The top drainage hole can quickly remove internal moisture and maintain a good drying effect.

Sealant: A new type of synthetic silicone sealant with a beautiful appearance, and excellent sealing performance can operate at high temperatures for long periods.

Heat Dissipation Holes: Double-row heat dissipation holes can quickly exhaust the hot air during operation, ensuring long-term stable operation.

Application

This device is suitable for industrial and mining enterprises, schools, research institutes, laboratories, and other units to carry out drying, baking, wax melting, heat treatment, and other work through a hot air circulation system.

Specifications

Model: 101-0AB

Material: Cold Plate, Stainless Steel

Color: White, Green

Style: Modern

Surface Treatment: Spraying

Assembly Required: No

Door Style: Side-open Door

Control Type: Button Control

Power: 1000W

Voltage: 110V

Capacity: 45L/12Gal

Temperature Range: RT+10°C～300°C/RT+18°F～572°F

Tray Maximum Loading: 15kg/33lbs

Tem. Resolution: 0.1°C/0.18°F

Tem. Fluctuation: ±1°C/±1.8°F

Gross Weight: 36.35kg/80lbs

Net Weight: 32.25kg/71lbs

Tray Spacing: 6cm/2.36in

Tray Size: 32.5*33.5cm/12.8*13.18in

Window Size: 19*24.5cm/7.48*9.64in

Product Inner Size: 34*34*35cm/13.38*13.38*13.78in

Product Size: 46.5*65*49.5cm/18.3*25.6*19.48in

Package Size: 58*60*73.5cm/22.83*23.62*28.93in

Package Included

1*Horizontal Electric Blast Drying Oven

1*English Manual

All Accessories for Assembly
