About this item

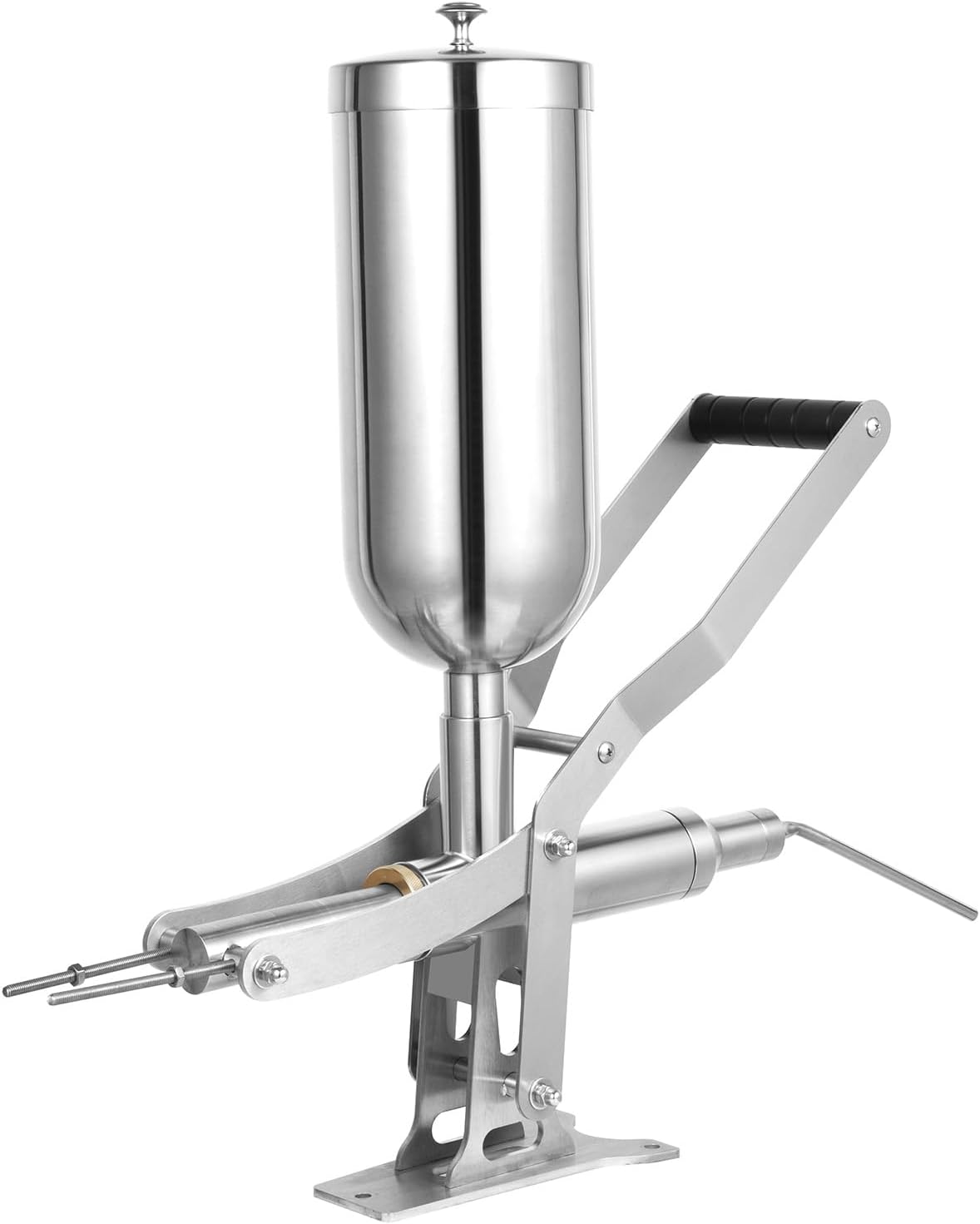

• Durable & Sturdy: This donut filler machine is made of high-quality 304 stainless steel, which is sturdy and durable. Its excellent high-temperature resistance (up to 248°F) also allows you to safely place hot fillings inside, ensuring food safety.
• Large Capacity: A large capacity hopper can fill approximately 5.28qt of cream at once, avoiding frequent refilling and providing you with a more efficient working environment.In addition, three screw holes at the bottom allow you to screw it onto the countertop to further enhance its stability.
• Highly Efficient: Its accurately quantitative filling of cream can fill you with more donuts in a shorter amount of time, taking your business to the next level! The equipped 4 anti-drip filling nozzles for replacement can meet your different needs!
• Quantitative Filling: This donut filler machine is easy to operate, just insert the filling nozzle into the donut, and gently pull the handle to fill the cream into the donut. The manual control allows you to freely control the amount of additions to meet personalized needs.The tail screws can adjust the single filling amount. With a filling accuracy of up to ± 1G, it allows you to adjust the amount reasonably according to the specific capacity of the filled dessert/container.
• Simple Installation: The simple structure and clear parts can help you complete the installation in a short time, enjoying a sense of achievement from components to finished products! In addition, The smooth surface paired with the detachable design allows you to easily wash away stains with running water.

Details

Humanized Nozzle: The extended nozzle tilts downwards to allow the cream to flow fully into each part of the donut, making it fuller and more delicious.

Top Lid: It can prevent dust from entering and keep the cream fresh and clean inside the hopper.

Application

It is suitable for paste and liquids with good fluidity (no particulate matter), such as cream filling, jam filling, paste filling, etc. in kitchens, bakeries, restaurants, cafes, dessert shops, etc. It can also be widely used in industries such as pharmaceuticals and cosmetics.

How to Install

When you get this machine, most of the parts are assembled. You just need to assemble the hopper and nozzles.

1.Assemble the connecting rod with an M6 lock nut and washer.

2.Install two positioning rods with M6 lock nuts.

3.Choose a suitable nozzle and install it on a small funnel. Then install the hopper.

4.Finally, the entire filling machine is completed and assembled.

If you want a more precise filling volume, please install the rod of the dosing device(not included), and then tighten the nut.

Specifications

Material: 304 Stainless Steel

Color: Silver

Style: Modern

Surface Treatment: Brushing, Mirror Treatment

Assembly Required: Yes

Operation Type: Manual

Number of Nozzles: 4 (1 Long Nozzle, 3 Short Nozzles)

Capacity: 5L/5.28qt

Filling Weight: Min. 2g/0.004lbs

Filling Accuracy: ±1g/0.002lbs

Applicable Max. Temperature: 120°C/248°F

Gross Weight: 7.85kg/17.3lbs

Net Weight: 7kg/15.43lbs

Product Size: 60*65cm/23.62*25.6in

Base Size: 18*10.5cm/7*4.13in

Handle Length: 14cm/5.51in

Short Nozzle Length: 7.5cm/2.95in

Long Nozzle Length: 19cm/7.48in

Package Size: 58.5*33*19cm/23*13*7.48in

Package Included

1*Manual Donut-Filling Machine

1*Long Nozzle

3*Short Nozzles

1*English Manual

All Accessories for Assembly

Notes

1.Please carefully read the manual and strictly follow the precautions to have a better experience.

2.Please note that it is not suitable for particularly thick paste materials.

3.Please note that there should be no particles inside the liquid, as particles can cause machine blockage.
